 Full Automatic Chocolate Molding Machine

Main Instruction

Chocolate molding machine is an automatic machine for chocolate molding with the functions of mold heatingmold depositing、mold vibrating、conveying、cooling and demolding.Widely applied in production of pure solidchocolate.


Main Parameter

Total Power:2KW

Capacity:0-20mould/min

Quantity of moulds:400 pics

Dimensions:15000mm× 1100mm × 1600mm

Net weight:4500kg


Main Features

1.Full automatic PLC controlled,highly stable and reliable.

2.Larg control interface(10 inch touch screen)

3.Overload protection for all electrical equipment.

4.Electronic parameters stored program,easy operation.Machine can be ready for different chocolate and color within 20 minutes.

5.Customized craft ,chocolate and frumentum or other food can be mixed continuously.

6.Sensor monitoring and controlling realizes auto supply of material by chocolate storage tank.

7.Plastic guide-rail protection,chain won’t touch chocolate directly.

8.Servo motor control system,highly stable and reliable.

9.High polymer plastic guide-rail for chain,makes mould feeding more stable and reduce noise.


Mould Heating

Mould Heating -chocolate equipment

1 pan adopts double layer stainless steel insulation cover.

2 four groups ceramic heating plate heating. With ceramic fan (WGFJ - G006) installed at the back blowing hot air and drying mold evenly.

3 pan control: can be automatic controlled and manual controlled.


Pouring head

chocolate pouring head

Made by aluminum alloy, adopts 304 stainless steel hopper cylinder sandwich electric heating ,water cycling heat preservation.

Heating pipe: 6 kw heating tube

Double servo (1.1 KW) controlled pouring


Vibration control

vibration control

Vibration motor: MVE - 100/3 vibrator

Inverter controls vibration frequency


Cooling system

cooling system


Water tower

water tower


Conveying system

Conveying system

The main motor: purple light 155 gear speed reducer with 4.4 KW servo


Cooling tunnel

chocolate equipmentCooling tunnel


Demoulding system

chocolate Demoulding system

1.SMC cylinder spring pull up, plastic mould stripping hammer.

2.cylinder controlled beat, beat frequency is adjustable.

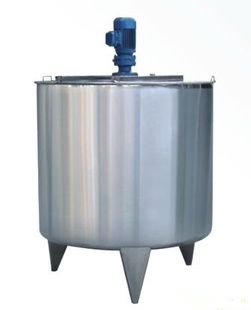

Chocolate HOLDING TANK

Specifications:

This tank is to store the fine grinded chocolate mass with constant temperature controlled by automatic temperature control systerm.

Descriptions:

1. lst1000 chocolate thermal cylinder is necessary equipment in the chocolate production process, mainly used heat preservation container to store the after-grinding chocolate syrup,in order to meet the technological requirement and continuous production request.

2. This product not only can realize temperature decrease,elevation of temperature,heat preservation, but also has the function of degasification,air sweetening,dehydration as well as to prevent pulp fat  separation and so on .

MAIN TECHNICAL PARAMETERS:

Type

Capacity

( T/shift )

Power

(KW)

Weight

( KG )

Dimension

(MM)

lst500

500

7

580

1100 * 800 * 1900

lst1000

1000

10

880

1200 * 1000 * 1900



ChocolatePump

Chocolate Pump

Motor Power:3kw / 380v

Convey flow rate:32L / h

Conveyor length:12m

Syrup viscosity:48℃ E36

Wight:≤ 205kg

Outside dimension:950 × 350 × 640 1mm
